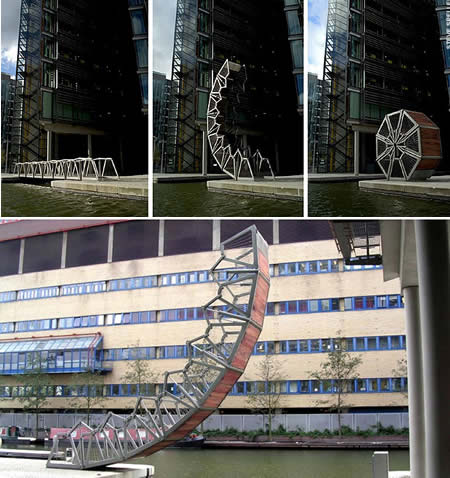

Designed by Heatherwick Studio, the award-winning
Rolling Bridge is located Paddington Basin, London. Rather than a
conventional opening bridge mechanism, consisting of a single rigid
element that lifts to let boats pass, the Rolling Bridge gets out of the
way by curling up until its two ends touch. While in its horizontal
position, the bridge is a normal, inconspicuous steel and timber
footbridge; fully open, it forms a circle on one bank of the water that
bears little resemblance to its former self.
Twelve metres long, the bridge is made in eight steel and timber
sections, and is made to curl by hydraulic rams set into the handrail
between each section.
The bridge consists of eight triangular sections hinged at the walkway level and connected above by two-part links that can be collapsed towards the deck by hydraulic cylinders, which are concealed in vertical posts in the bridge parapets. When extended, it resembles a conventional steel and timber footbridge, and is 12 metres long. To allow the passage of boats, the hydraulic pistons are activated and the bridge curls up until its two ends join, to form an octagonal shape measuring one half of the waterway's width at that point.
The maintenance and opening of the bridge is managed by Merchant Square Estates and it is up every Friday at noon. Following on from the maintenance issues in 2008, the bridge has been repaired and was fully operational from April 2009.
In 2006 Thomas Heatherwick won the "British Designer of the Year" award for his unique rolling bridge. Although the bridge has become known as a 'rolling bridge', a more accurate description of its action is that it curls - someone said "like a scorpions tail".
 |
| Rolling Bridge !!! |
The bridge consists of eight triangular sections hinged at the walkway level and connected above by two-part links that can be collapsed towards the deck by hydraulic cylinders, which are concealed in vertical posts in the bridge parapets. When extended, it resembles a conventional steel and timber footbridge, and is 12 metres long. To allow the passage of boats, the hydraulic pistons are activated and the bridge curls up until its two ends join, to form an octagonal shape measuring one half of the waterway's width at that point.
The maintenance and opening of the bridge is managed by Merchant Square Estates and it is up every Friday at noon. Following on from the maintenance issues in 2008, the bridge has been repaired and was fully operational from April 2009.
 |
| Mechanism of How it Works. |
In 2006 Thomas Heatherwick won the "British Designer of the Year" award for his unique rolling bridge. Although the bridge has become known as a 'rolling bridge', a more accurate description of its action is that it curls - someone said "like a scorpions tail".
